Wheelchair Accessible Boarding Ramps
Our wheelchair ramps are made for the marine environment. They are not land based ramps trying to be used on a vessel.

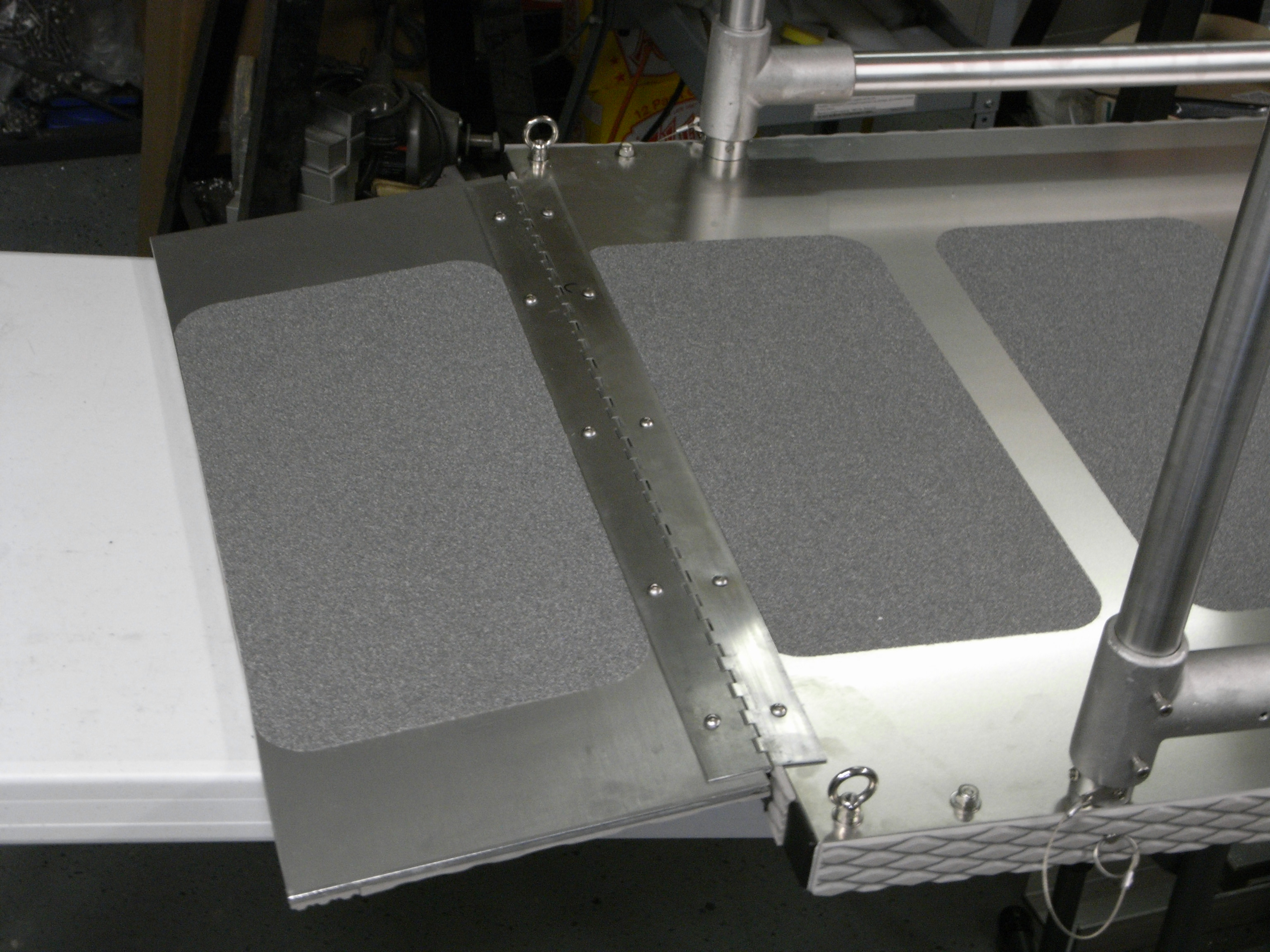

Unlike the way most people use land based wheelchair ramps, when used on a vessel, the vessel is always moving up, down, forward, aft, and side to side as the tide, wind, and waves control it. Therefore, the ramp end that is on the dock/land is also moving. As the tide comes and goes, the vessel end of the ramp may be higher or lower than the dock and the underside of the ramp may be resting on the dock instead of the end with the standard rubber pad that most traditional ramps have. What we do is add hinged transition plates to the ends of the ramp to allow the wheelchair to transition the height difference created by the changing height difference of the vessel and dock. We also add UHMW skid pads to the under side of the ramp and at the bottom of the dock end of the ramp for it to slide on so not to damage the ramp or dock. Since the vessel is moving with respect to the dock, we have developed a mounting system to secure the ramp to the vessel. We have removable wheel guards to allow for better storage aboard the vessel. We use a flat non-skid for smother rolling on the ramp. We offer a removable optional handrail system. Our wheelchair ramps are extendable with optional extra length sections. Most of our wheelchair ramps are custom made to meet the users specific needs. Contact us to discuss you requirements.
|
Model
|
Description
|
PRICE
|
|
| PWA-4 | 4' STEADI-PLANK™ Wheelchair Accessible, with removable wheel guards and optional removable handrails on one or both sides. See note "A" | $3,695.00 | |
| PWA-6 | 6' STEADI-PLANK™ Wheelchair Accessible, with removable wheel guards and optional removable handrails on one or both sides. See note "A" | $3,895.00 | |
| PWA-8 | 8' STEADI-PLANK™ Wheelchair Accessible, with removable wheel guards and optional removable handrails on one or both sides. See note "A" | $4,395.00 | |
| PWA-10 | 10' STEADI-PLANK™ Wheelchair Accessible, with removable wheel guards and optional removable handrails on one or both sides. See note "A" | $4,595.00 |
Our wheelchair accessible boarding ramps can be designed to accommodate your Specific needs. We can make them to go from the dock to your vessel and from one point of your vessel to another.

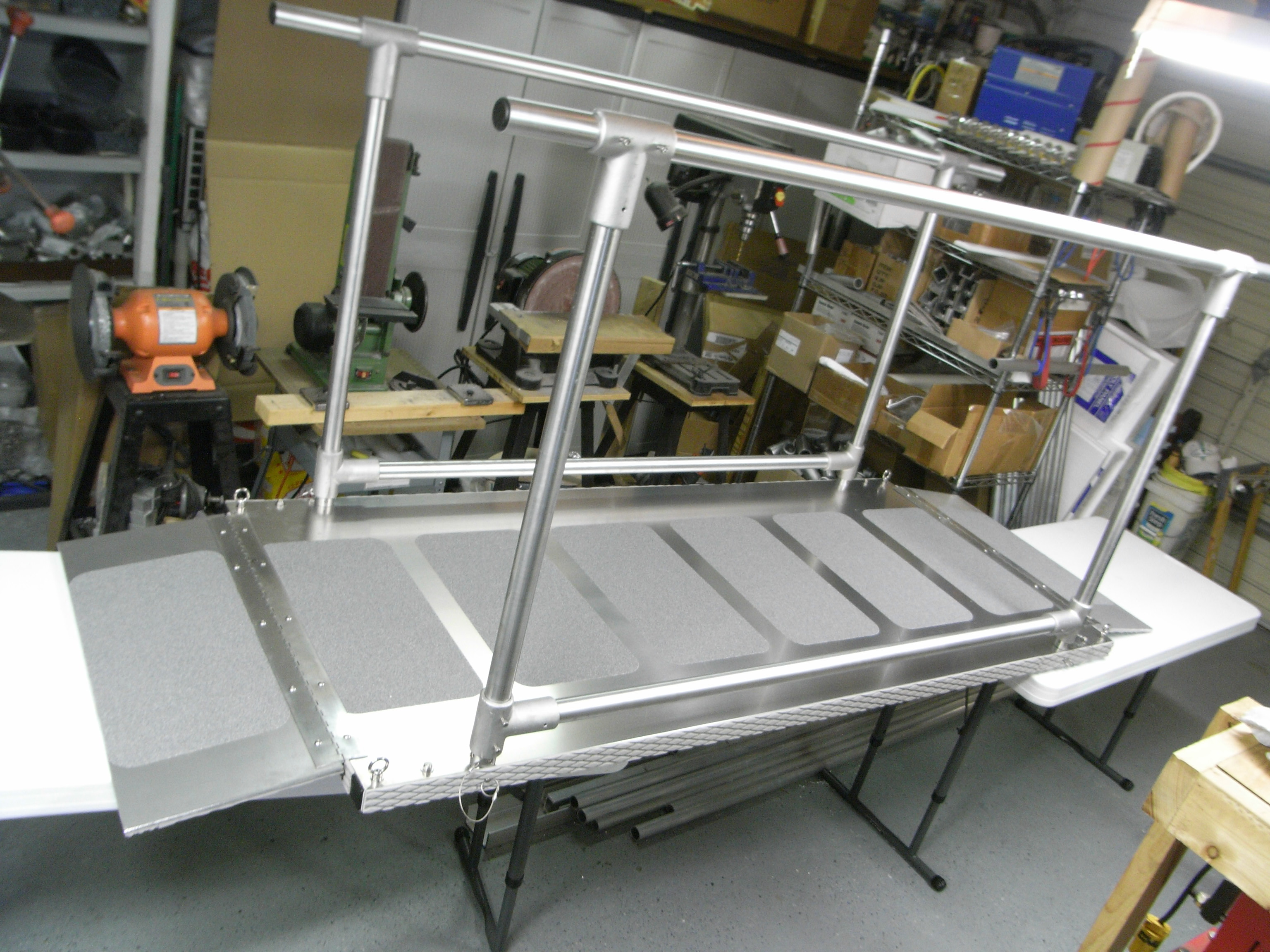

new wheel guard system for 2015

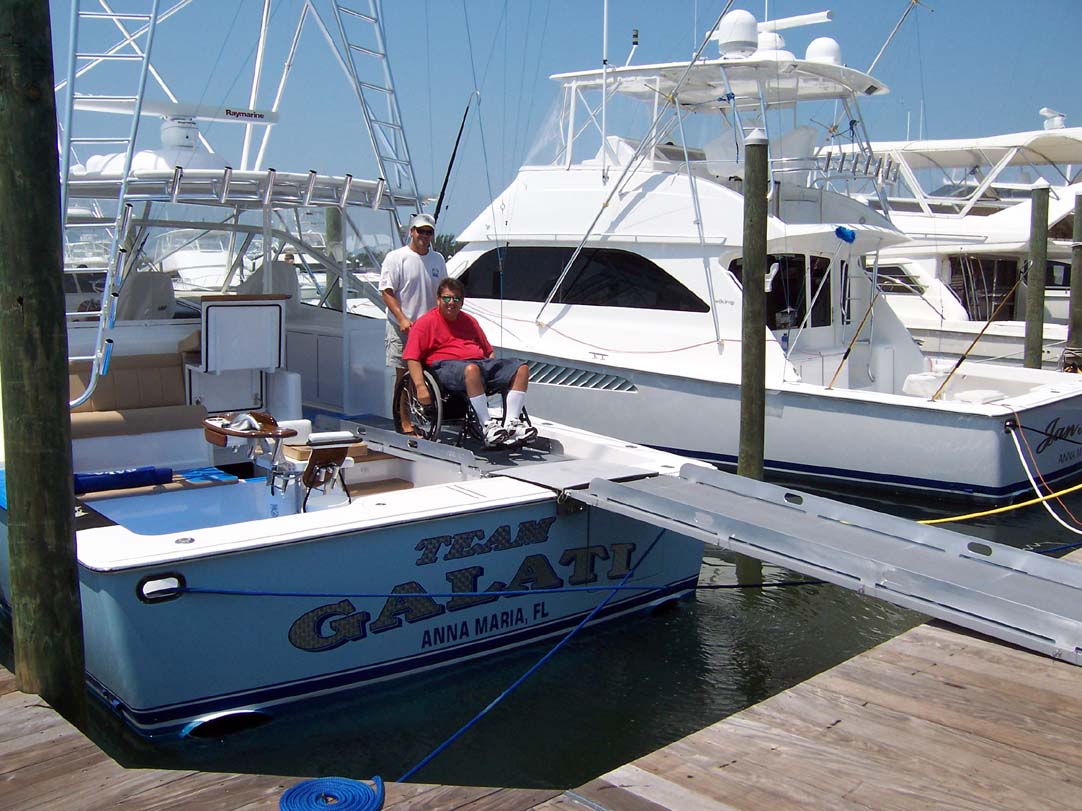

The above is a Viking 520 Open with a PWA-CX custom length STEADI-PLANK™ wheelchair accessible ramp.
(Total length of both ramp sections is 23') This ramp has the removable wheel guards but no handprails.
It also incorporates a custom transom mount so that Chris can go from the dock to the helm station.
The above is a wheelchair access ramp on a 43' Defever.

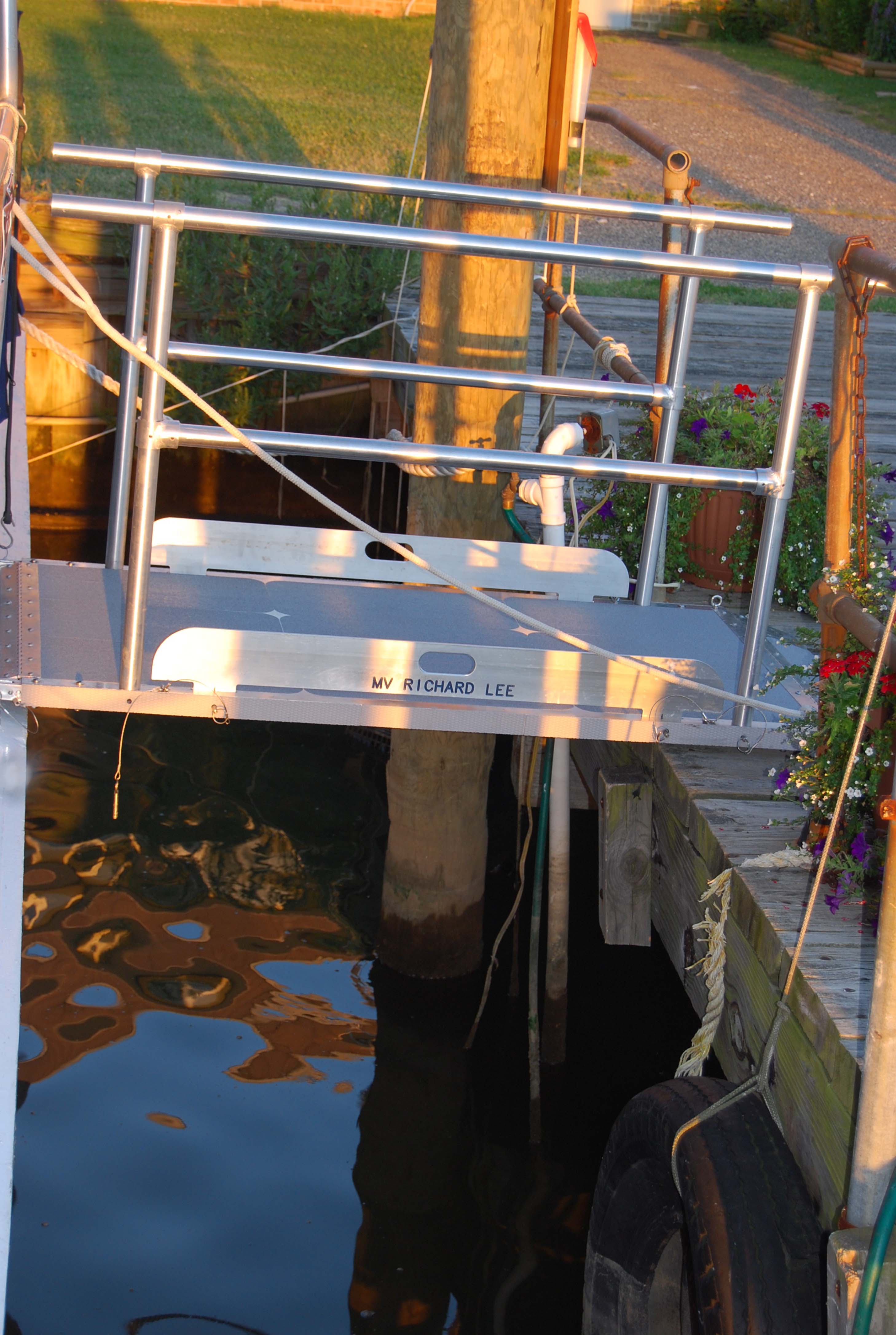

Above ....a couple of photos of the new boarding ramp you made for the Richard Lee. It is working out great! Best regards, V.K.

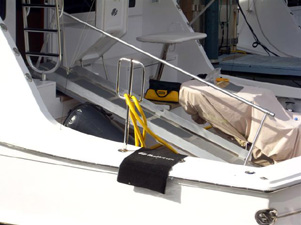

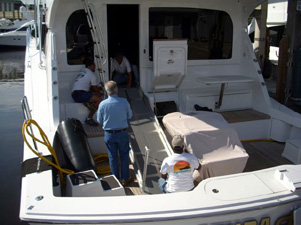

Installing a Wheelchair ramp on a 77' Hatteras from the cockpit to the saloon.

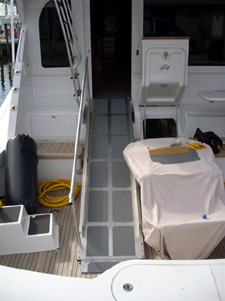

Wheelchair ramp from cockpit to saloon
The PWA-X STEADI-PLANK™ Wheelchair Accessible system is comprised of:
• PWA-X 33" wide basic ramp system with:
• Removable wheel guards on both sides.
•Ramp transition plates on both ends.
•Standard "Cam Mount set" mounting system.
•Gray rubber side strips on all four sides of ramp.
Note A:
Wheelchair ramps may be ordered with one or both side handrails.
Please add $75.00 per linear foot for each side handrail on any PWA, wheelchair ramp.
Custom size complete PWA-X Wheelchair accessible "STEADI-PLANK™" systems can be manufactured at a cost of approximately $250.00 or less per sq. ft.
Contact us for more information on custom wheelchair accessible "STEADI-PLANK™" sizes and mounting options.

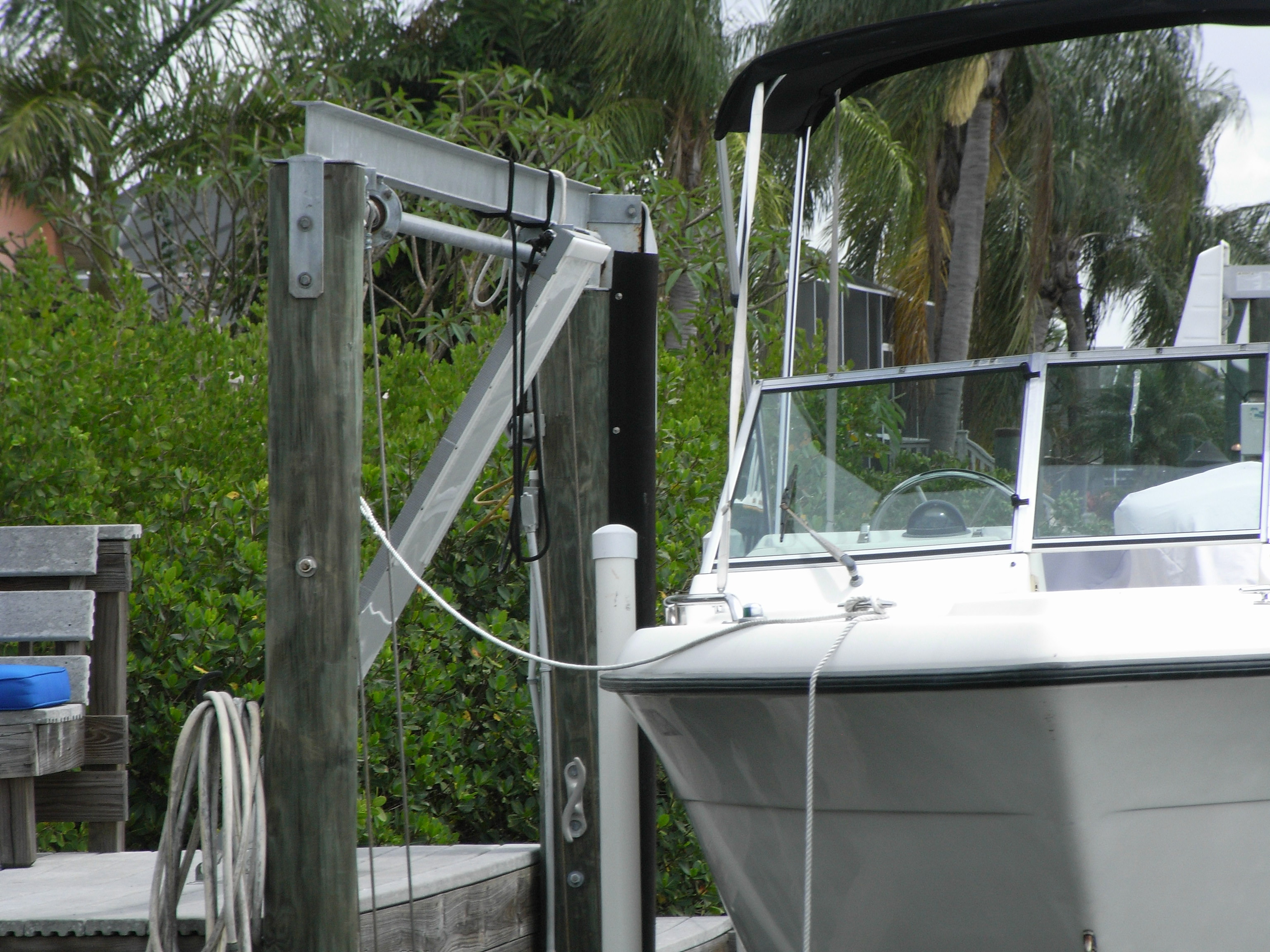

Our ramps are not designed to be cantilevered. They must be supported at both ends either with one of our mounting systems,or be resting on a surface or with a supporting “trapeze arrangement” that will support the wight of the ramp with several people on it.
Why buy The STEADI-PLANK™ Boat Boarding Ramp System©? … Because you and your guests deserve it!
