For an image of von Mises stress and displacements for the 4' and 6' STEADI-PLANK™ Boat Boarding Ramp System clik the following:

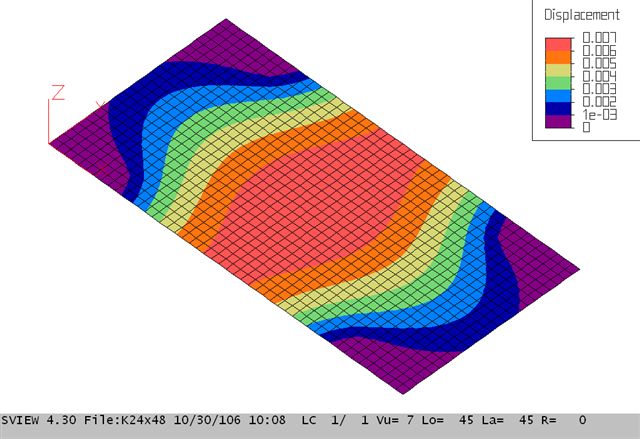

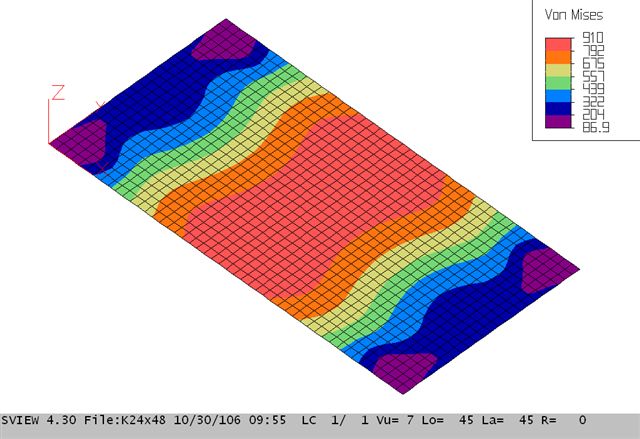

PS-4 (4') Von Mises Click Here PS-4 (4') displacement Click Here

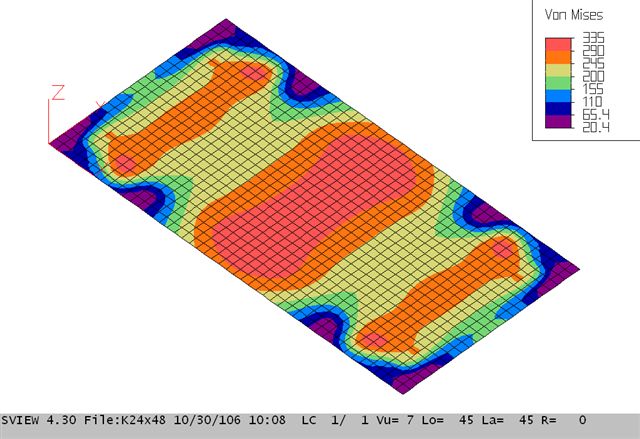

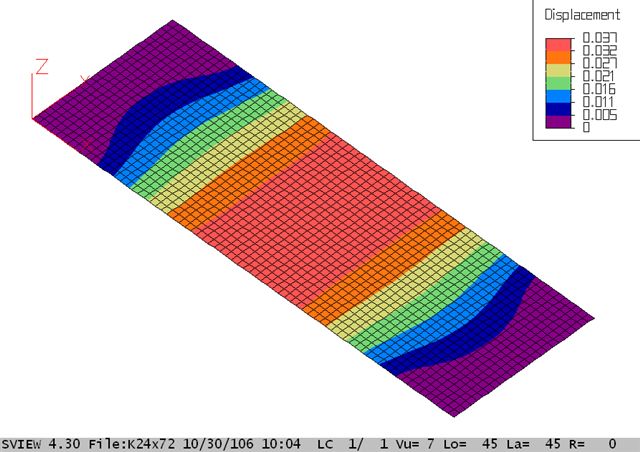

PS-6 (6') Von Mises Click Here PS-6 (6') displacement Click Here

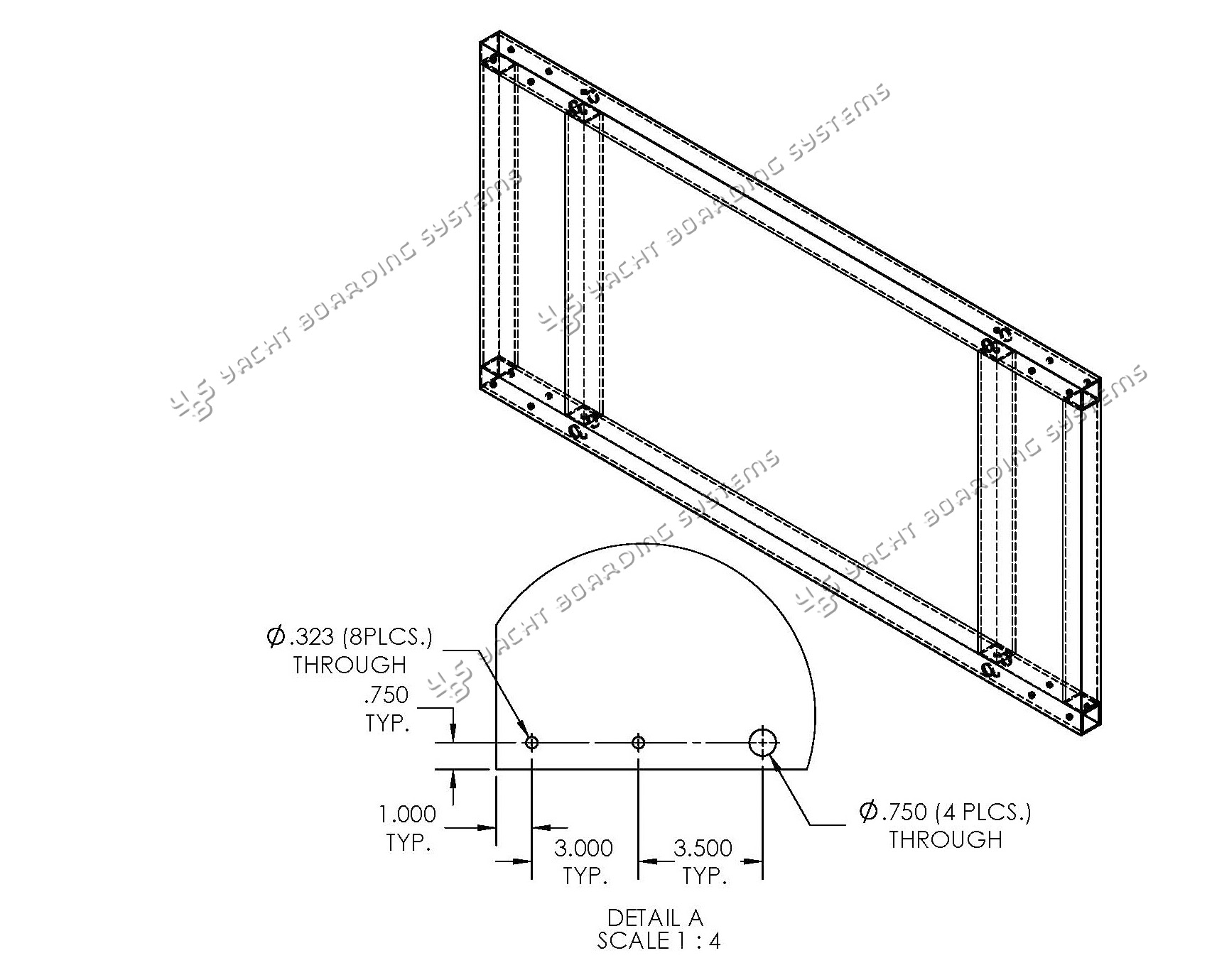

Welded Frame Drawing Click Here

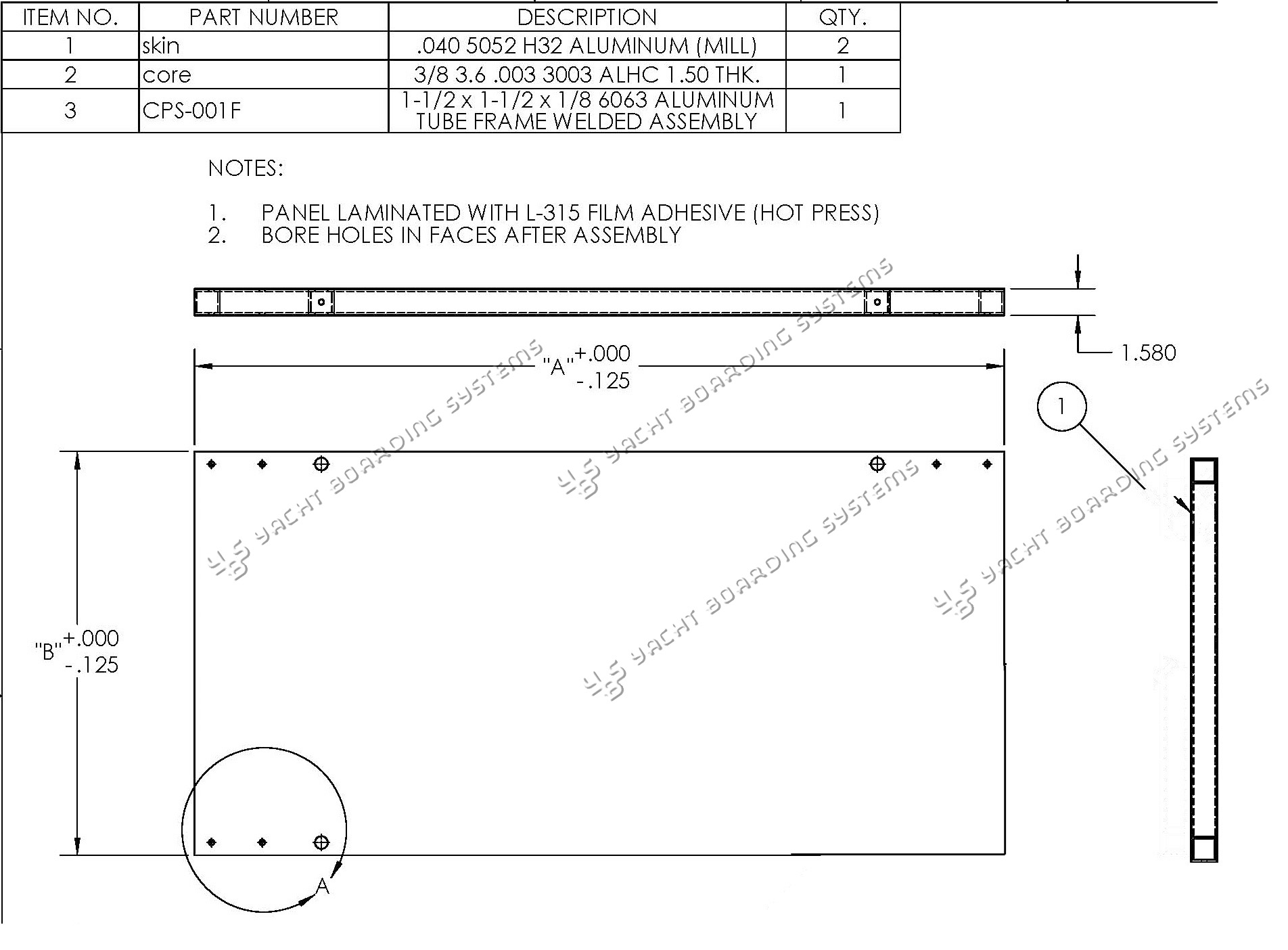

Ramp Skin Drawing Click Here
| PS-4 / PE-4 | PS-6 / PE-6 | ||
| Size Approximate +/- 1/4" | 24" X 48" X 1.58" | 24" X 72" X 1.58" | |
| Weight +/- 3 lb. | Aprox 31 lb. | aprox 42.5 lb. | |
| Distributed live working load | 2,000 lb. | 1,800 lb. | |
| Plank surface temperature | - 40° F to + 200° F | - 40° F to + 200° F |
Note:
•You may connect up to two (2) PS/PE sections together to create a boarding ramp with a span of 4' up to 20'. Do not connect more than two (2) sections together in length.
•PS / PE ramps are made of Marine Grade Aluminum Skin with Aluminum Honeycomb Core.
•Mounting hardware is Marine Grade Aluminum or Staneless Steel.
•Glide Plates and Pads are made of UHMW.
Local weather or sea conditions may contribute to minor corrosion. Aluminum and stainless steel are not completely free from corrosion attack. Regular fresh water rinsing and periodic cleaning with a mild soap will help to retain luster
Custom size complete PSC-X "STEADI-PLANK™" systems can be manufactured at a cost of approximately $149.90 per sq. ft. Please contact us.
